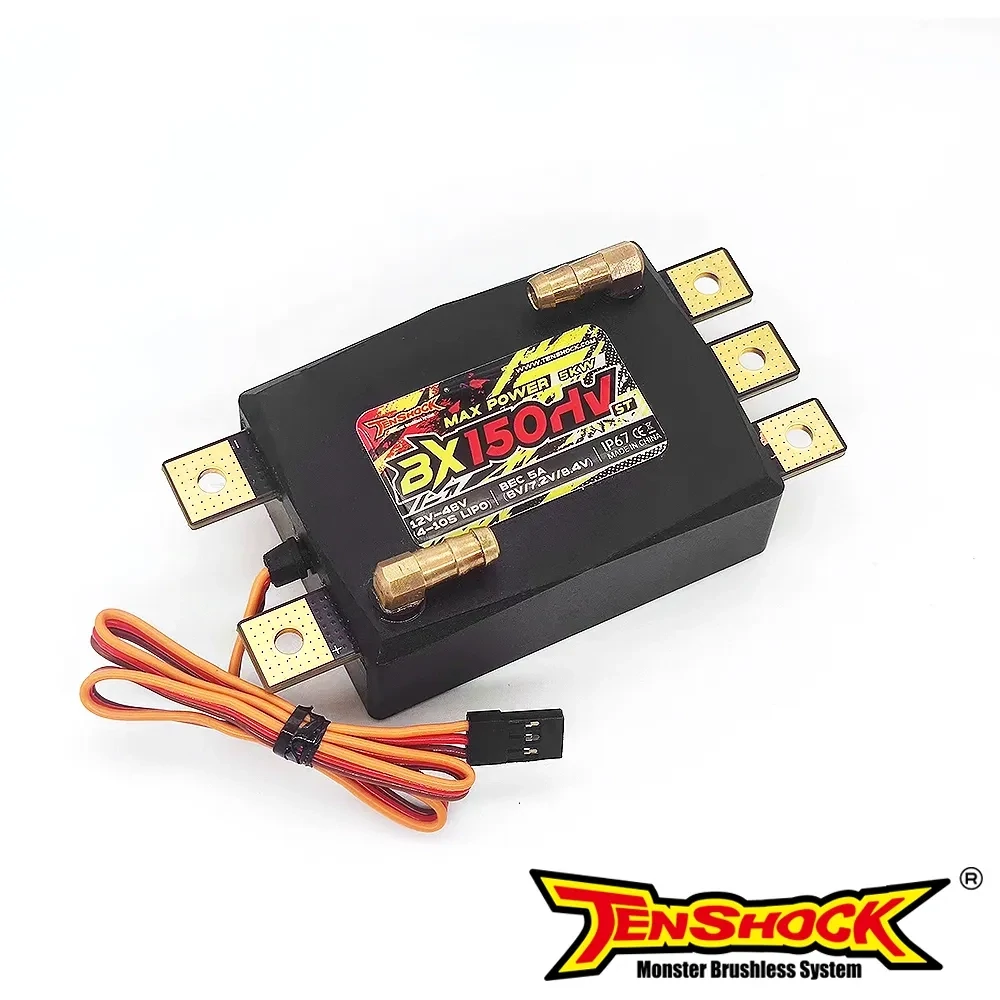

BX150 High Voltage

1.Adopt a newly designed water cooling scheme to improve the water cooling efficiency by 30%

2.The diamond edge is designed with diamond cutting design, which makes the controller as a whole simple and elegant

3.The connection of cables is fixed by bolts, which effectively improves the current overload capacity

4.Fully filled with glue, with protection grade of IP67.

5.CNC aluminum alloy shell and carbon fiber bottom cover, showing its excellent performance

6.Light weight, the overall weight is only 146g.

7.BEC output voltage three speed regulation (6V / 7.2V / 8.4v)

8.The unique core algorithm support enables the 8-pole inner rotor brushless motor to work perfectly and efficiently

9.Braking energy recovery function, making the use of electric energy more efficient

10.Support tenshcok-link, to be programmed.
Details

SKU:TS-BX150HV-ST

SIZE:68mm*50mm*30mm(Including faucet height)

Weight:146g

Max Power:5KW

Li-PO Quantity:12V-46V(4S-10SLipo)

Max Current: 150A

BEC:5A(6V/7.2V/8.4V) 40W

Max/RPM:120000RPM(4Pole)

Control method:PWM

Cooling mode::Water-cooling

Degree of protection:IP67

Wiring method:Bolt-on connection

TENSHOCK-LINK:yes

Historical Data Record::NO
